Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

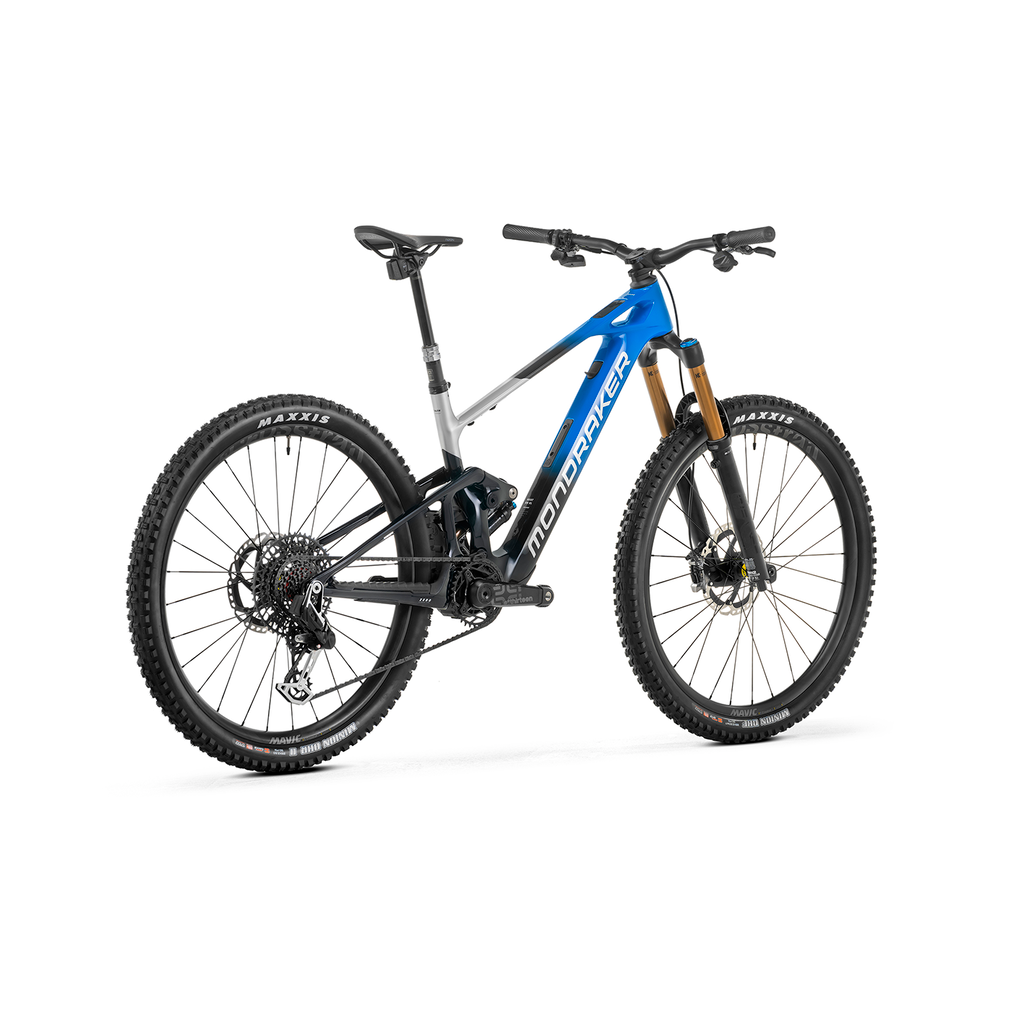

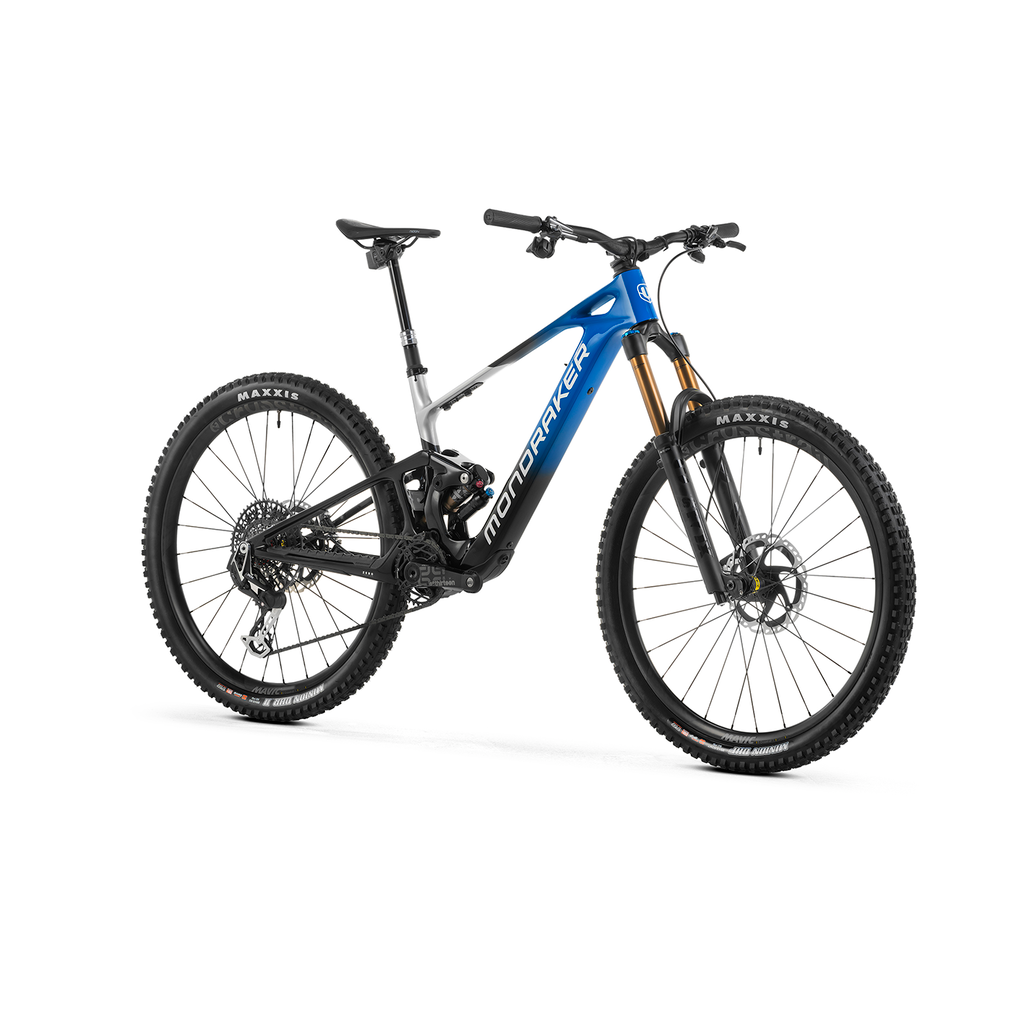

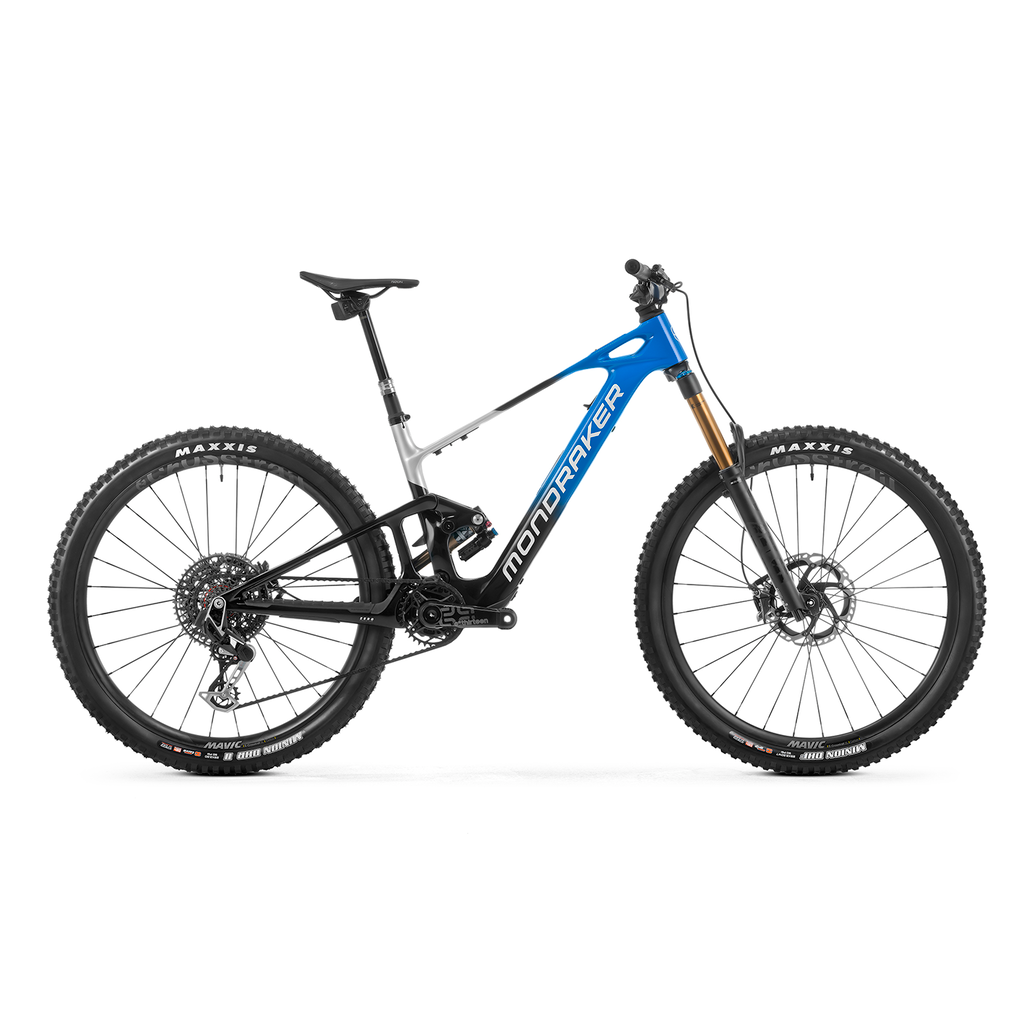

Das NEAT RR SL kommt mit einer Fox 36 29 Float GRIP2 Factory Kashima Gabel, SRAM XX Eagle T-Type AXS Antrieb, RockShox Reverb AXS Dropper Post und Mavic E-CrossMax Carbon XL R Laufrädern.
: Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Schaltung: Sram XX Eagle AXS, T-Type, 12s
Kurbel: E.13 TRS Race carbon ebike, All sizes: 160mm
Rahmenmaterial: Carbon
Gewicht (kg): 18.3
Gabel: Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Bremssystem: Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin
Nabe: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Felgen: Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Dämpfer: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Akkuleistung: TQ HPR-50 360Wh integrated and removable
Motor: TQ HPR-50
Reifen: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead / Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Kette: Sram X0 Eagle T-Type, 12s, Powerlock
Kassette: Sram XG-1295, 10-52T, T-Type, 12s
Schaltwerk: Sram XX Eagle AXS, T-Type, 12s
Schalthebel: Sram Eagle AXS Pod MMX, 12s
Lenker: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Griffe: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Vorbau: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Sattel: Fizik Terra Aidon Slim X5
Sattelstütze: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Dämpfer: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Antrieb: TQ HPR-50
Rahmen: Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Steuersatz: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Nabe vorne: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
