Hanger: SRAM UDH

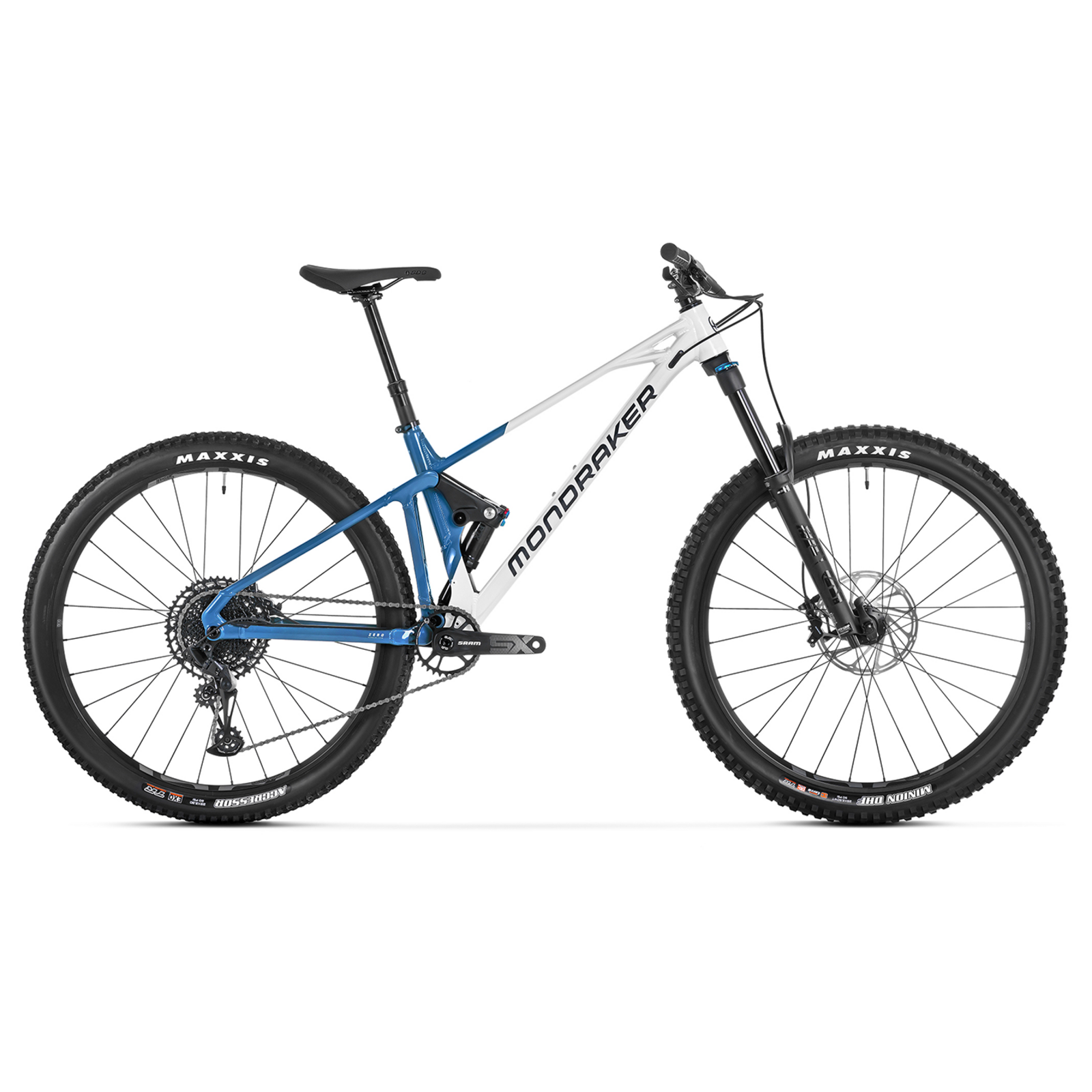

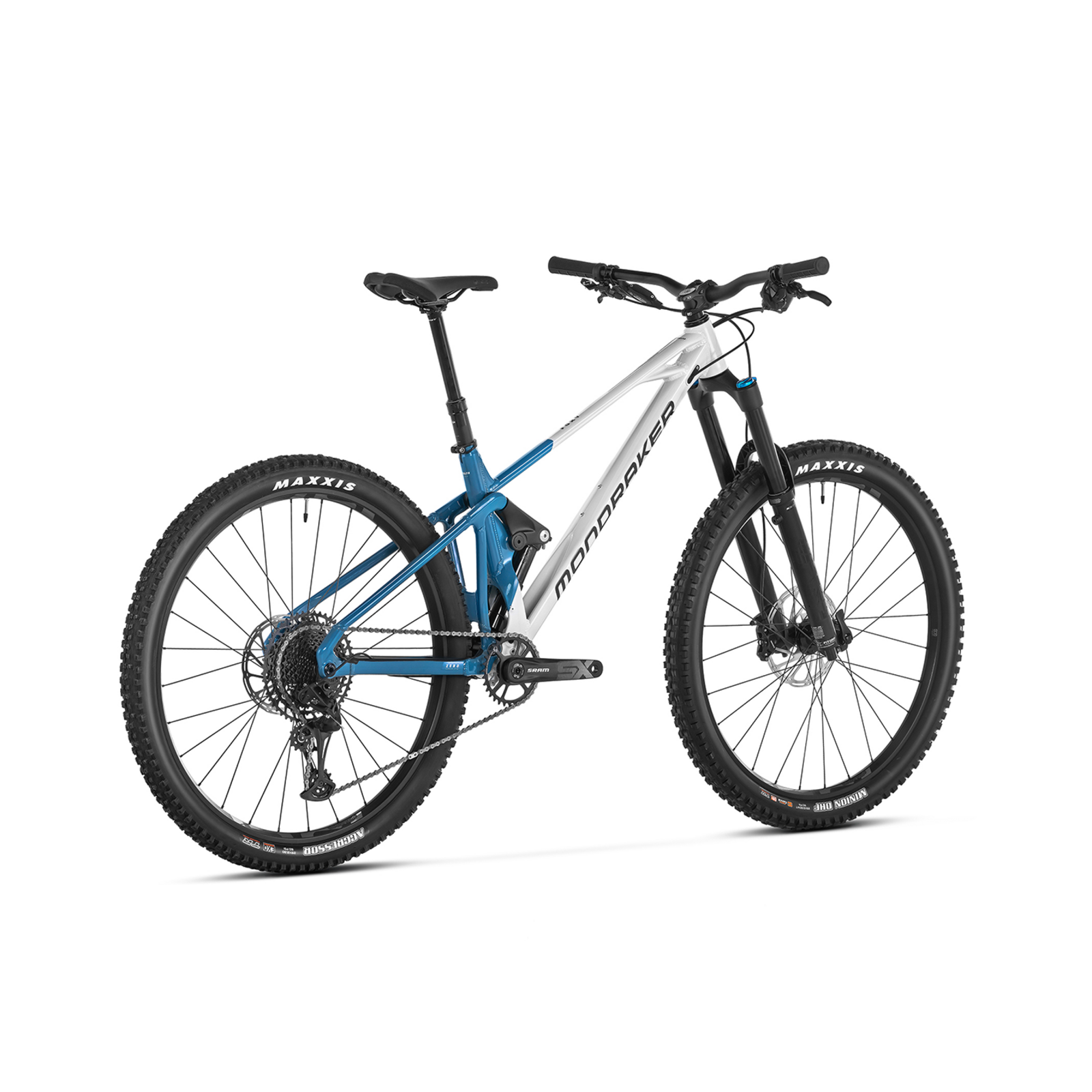

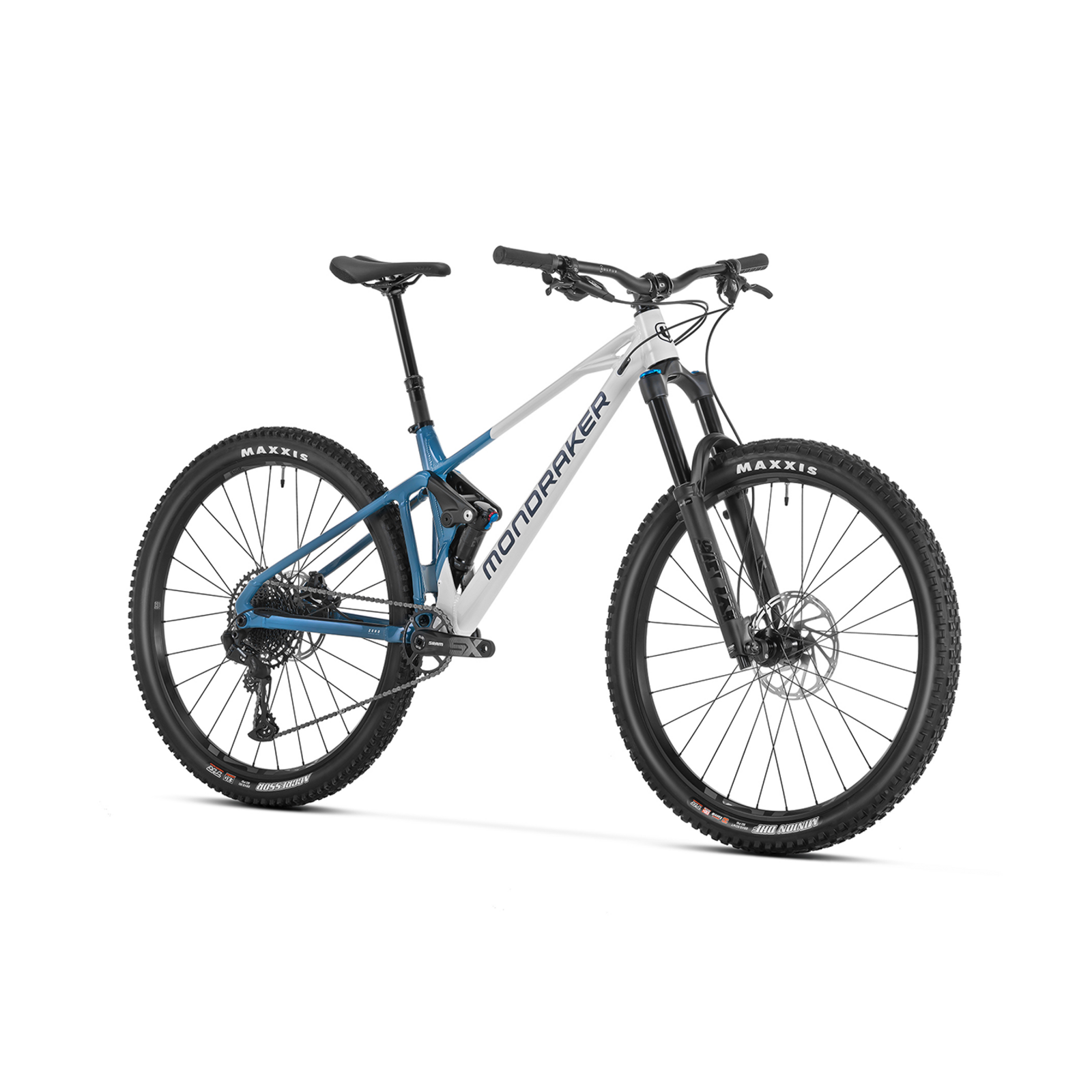

Trail, All Mountain, Enduro Was immer du willst! Mondrakers innovativstes, effizientestes und leistungsfähigstes Mountainbike ist zu allem bereit. Anlegen, Zielen und Feuer frei! Das Foxy ist DIE Wunderwaffe, mit der Du immer ins Schwarze triffst. Über einen Flipchip im Hinterbau kann beim Foxy Carbon die Geometrie in zwei Stufen eingestellt werden. Bei Bedarf verlängern sich so die Kettenstreben, das Tretlager wandert nach unten und der eher lange Reach verkürzt sich um vier oder fünf Millimeter.
: Hanger: SRAM UDH
Schaltung: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Kurbel: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rahmenmaterial: Aluminium
Gewicht (kg): 16.5
Gabel: Fox 36 29 Float Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Bremssystem: Sram G2 R, 4-piston caliper, Centerline 200mm/180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Nabe: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Felgen: e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Dämpfer: Fox Float EVOL Performance, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Reifen: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Kette: Sram SX Eagle, 12s, Powerlock
Kassette: Sram PG-1210, 11-50T, 12s
Schaltwerk: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Schalthebel: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Lenker: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Griffe: Onoff Twin, 1lock-on, 135mm
Vorbau: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Sattel: SDG BEL-AIR 3.0, LPU foam, steel rails
Sattelstütze: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Dämpfer: Fox Float EVOL Performance, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Rahmen: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Steuersatz: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Nabe vorne: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
