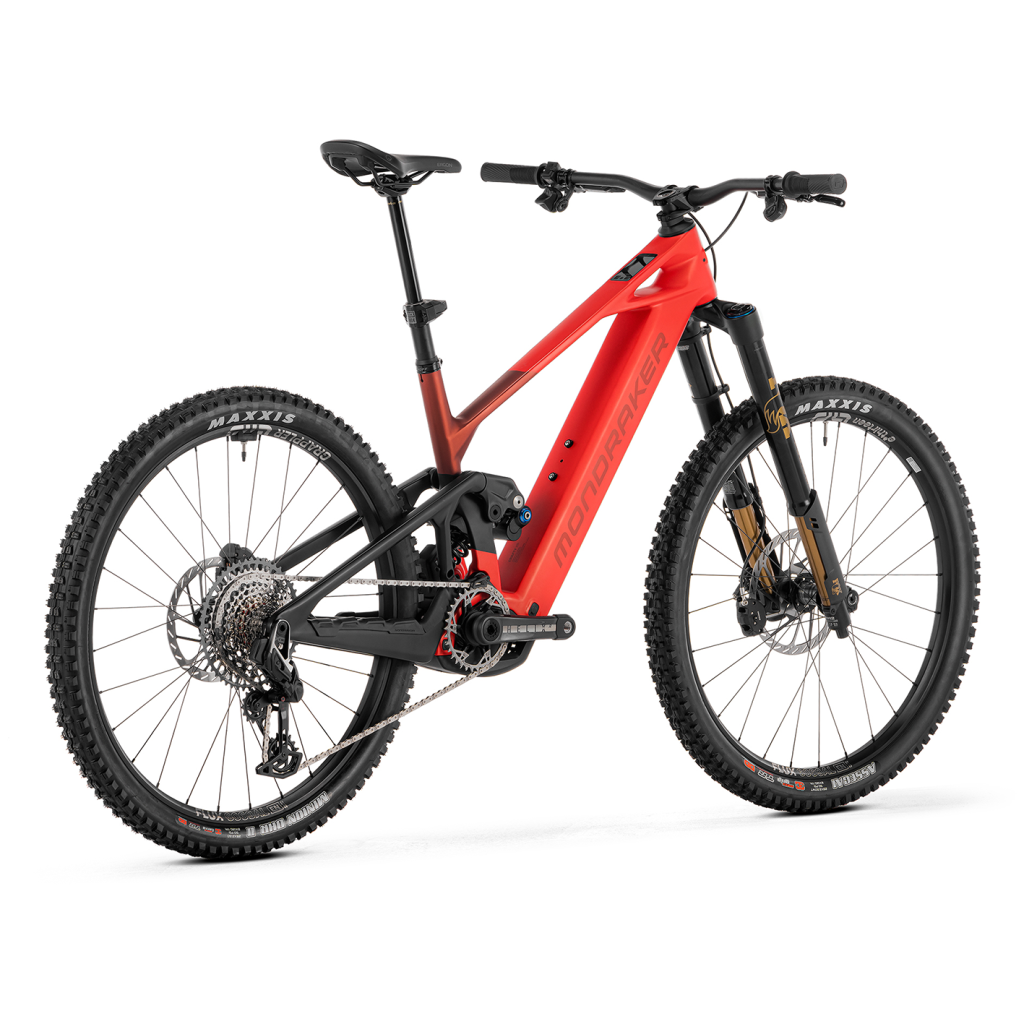

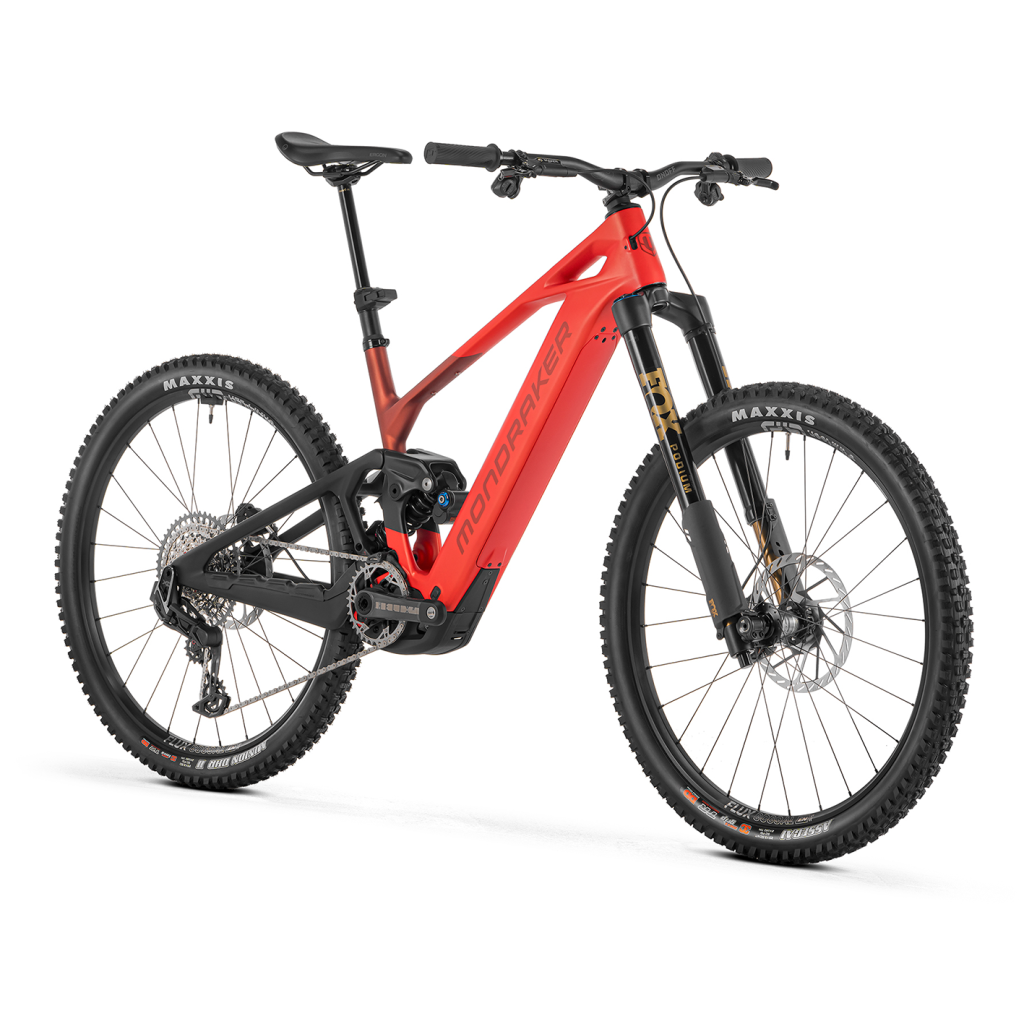

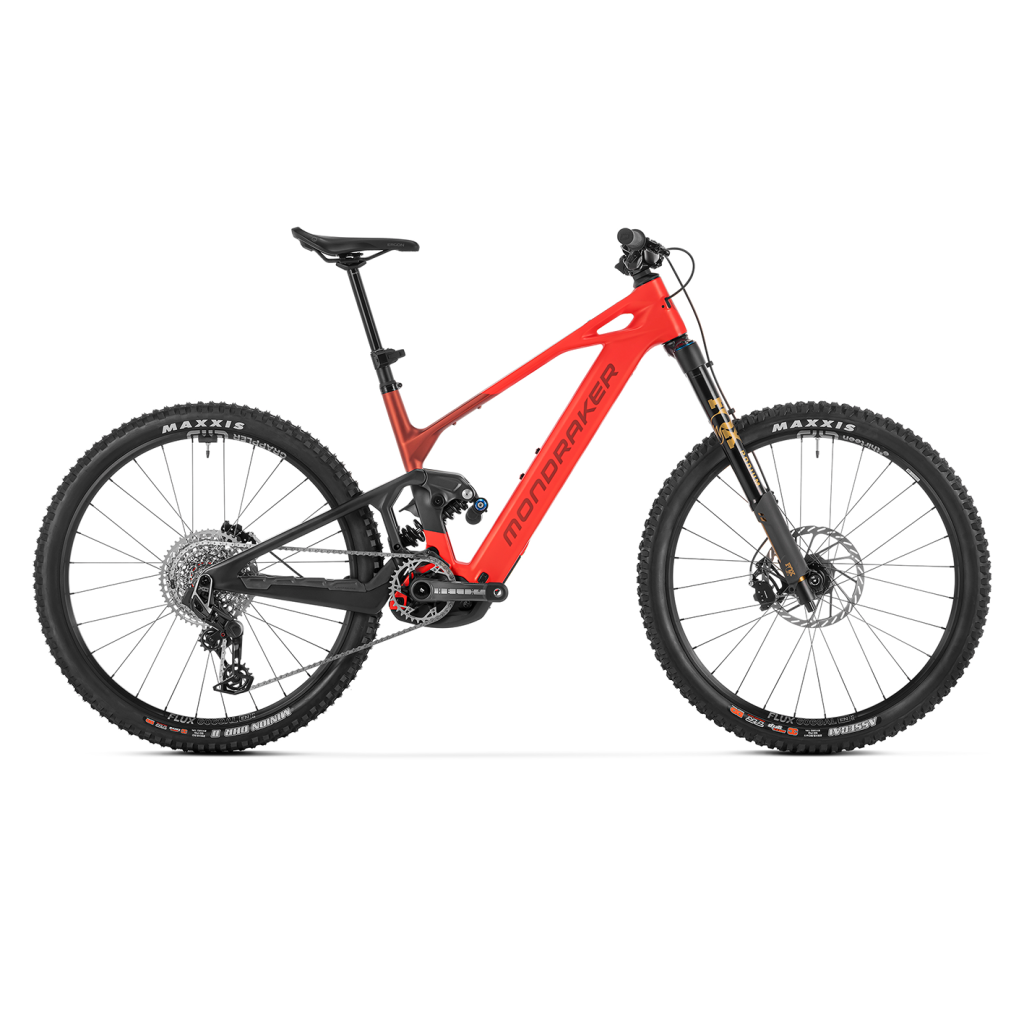

Gar nicht so einfach, sich zu entscheiden, oder? Der Reiz des Crafty Carbon liegt nicht nur in seiner Power, dem Federweg oder seiner Reichweite. Klar ist, dieses Bike ist eine echte Performance-Ansage: Bosch CX Gen5 Motor, herausnehmbarer 800Wh Akku und das nahtlos integrierte Kiox 400 Display direkt im Oberrohr macht auch noch eine richtig cleane Optik! Aber hey, da sind auch noch die Farben! Jede erzählt ihre eigene Story.
Schaltung: Sram X0 Eagle AXS, T-Type, 12s
Kurbel: E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Gewicht (kg): 22.9
Gabel: Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Nabe: e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Felgen: e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Dämpfer: Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Akkuleistung: Bosch Powertube 800Wh
Speichen: e*thirteen Sapim D-light / Brass
Kette: Sram GX Eagle T-Type, 12s, Powerlock
Kassette: Sram XS-1275, 10-52T, T-Type, 12s
Schaltwerk: Sram X0 Eagle AXS, T-Type, 12s
Schalthebel: Sram Eagle AXS Pod MMX, 12s
Lenker: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Griffe: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Vorbau: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Sattel: Ergon SM-10
Sattelstütze: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Dämpfer: Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Rahmen: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Bremshebel: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Steuersatz: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Nabe vorne: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
